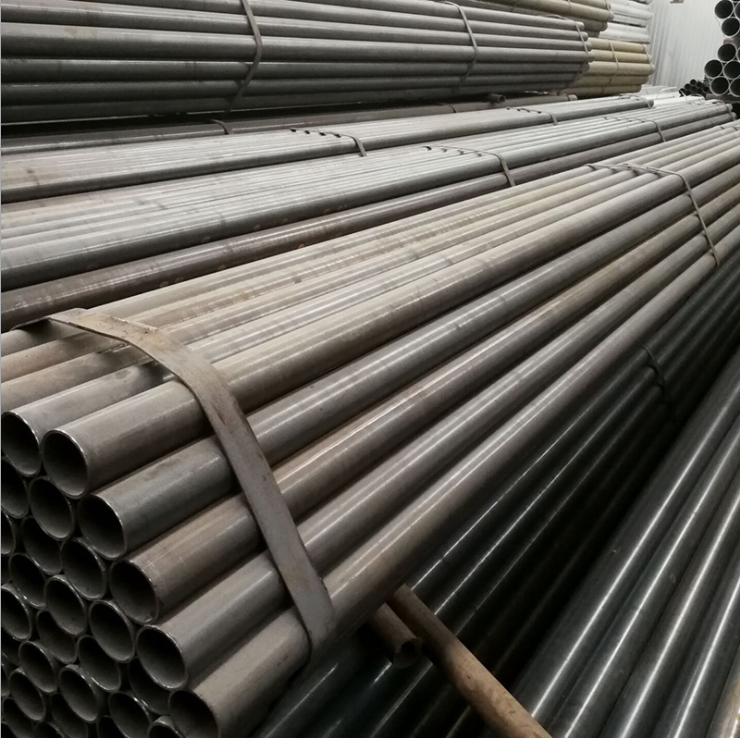

api astm carbon seamless steel tube price
MOQ: 10Ton/USD 480-580
Different MOQ, different prices
If you need it, please contact our customer service as soon as possible
Our Advantage
1.5000㎡super large warehouse
2.5000 ton inventory
3.Eliminate middleman price difference
4.Service attentively and solve problems quickly
Specification:
|
Product name |
Carbon Steel Seamless Pipe |
|
Application |
Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, OIL PIPE, Chemical Fertilizer Pipe, Structure Pipe, Other |
|
Alloy Or Not |
Is Alloy |
|
Section Shape |
Round |
|
OD |
6mm - 273mm |
|
Thickness |
0.25-75mm |
|
Certificate |
ce, ISO9001 |
|
Grade |
10#,15#,20#,20Cr,40Cr,20CrMo,35CrMo |
|
Surface Treatment |
Hot rolled/Galvanized/Cold rolled |
|
Tolerance |
±1% |
|
Delivery Time |
15-21 days |
|
Wall Thickness |
4-130mm.0.25-30mm |
|
Surface |
Customers't Requirement |
|
Advantage |
Fast Delivery Time |
|
Payment terms |
L/C T/T (30%DEPOSIT) |
|
Packing |
Standard Sea-worthy Packing |
|
Standard |
||
|
GB standard |
Seamless steel pipe for structural purpose |
GB/T8162-2008 |
|
Seamless steel pipe for liquid service |
GB/TB8163-2008 |
|
|
Seamless steel tubes for low and medium boiler |
GB/3087-1999 |
|
|
Seamless steel tubes for high pressure boiler |
GB/5310-1995 |
|
|
Seamless carbon steel marine tubes |
GB/T5312-1999 |
|
|
High-pressure seamless steel tubes for chemical fertilizer equipments |
GB/6479-2000 |
|
|
ASTM standard |
Black and hot-dipped zinc-coated steel pipes welded and seamless |
|
|
Seamless carbon steel for high temperature service |
||
|
Seamless cold-drawn low-carbon steel heat exchanger and condenser tubes |
ASTM A179 |
|
|
Seamless carbon steel boiler tubes for high pressure |
ASTM A192 |
|
|
Seamless Medium-carbon boiler and superheater tubes |
ASTM A210 |
|
|
Seamless carbon for mechanical tubing |
ASTM A519 |
|
|
API standard |
Seamless steel pipe for casing |
API Spec 5CT |
|
Seamless steel pipe for line pipe |
API Spec 5L |
|
|
DIN standard |
Seamless steel tube for elevated temperture |
DIN 17175 |
|
Cold drawn seamless prevision pipe |
DN2391 |
|
|
Seamless circular unalloyed steel tubes subject to special requirements |
DIN 1629 |
|
Production of seamless pipe
The production process commences with solid steel rounds, also known as billets, being cut to a specific length and then heated to nearly 2,300°F in a walking-beam reheat furnace. Next, the preheated rounds are transformed into a tube shell through a process known as rotary piercing, where the billets are rolled at high speeds between two barrel-shaped rolls. The resulting seamless shells are then shaped to the desired outer diameter and wall thickness using a mandrel mill, with the help of a retained mandrel. To ensure precision, the process is monitored using cutting-edge hot-wall measuring technology. The shells are reheated and further shaped in a 24-stand stretch-reducing mill, where their outside diameters are formed to meet the customer's exact specifications. The wall thickness is once again verified using a hot-wall measuring system. After being cooled and advanced on a walking-beam cooling bed, the pipes are batch cut and stored in an in-process area, where they are managed by computer-controlled gantry cranes.
Applications of Seamless Pressure Pipe
Seamless steel pipes are a suitable choice for applications involving elevated, or corrosive substances. They find utility in a wide range of scenarios, such as heat exchangers, chemical plants, power generation facilities, shipbuilding, and oil and gas sectors, as well as for applications requiring high pressure resistance.
